How Do I Choose the Right Conductor Material for Cables and Wires?
May 29, 2026
By Christian Dettmer, Head of Technical Department – HELU
The conductor material is the heart of a cable or wire. It forms the core and ensures efficient transmission of energy, signals, or data. Depending on the area of application, the right choice is crucial for the reliability, service life, and performance of a cable.
Theoretically, many materials come into question. In practice, however, copper and aluminium are the most commonly used conductor materials. There are good reasons for this: both metals have high electrical conductivity as well as different advantages and disadvantages. Optical fibres (fibre optics) have also become an indispensable part of modern data transmission.
In this article, we explain which properties distinguish a good conductor material and which factors play a role in the selection.
What properties make a good conductor material?
The conductor material determines how efficiently a cable can transmit electrical energy, signals, or data. Simply put, the higher the conductivity, the lower the electrical resistance and the lower the energy loss during transmission.
But other properties also play an important role in the selection of the right conductor material:
- Mechanical resilience
- Flexibility
- Weight
- Price
Depending on where the cable is used and the application, these factors can be weighted to varying degrees, for example, in moving applications, long cable routes, or particularly high current loads.
Copper—the standard for electrical conductors
Copper is the most commonly used conductor material worldwide. The metal has very good electrical conductivity. Copper is characterised by a low electrical resistivity and thus enables efficient current transmission.
In addition, copper offers many other advantages:
- Mechanical strength: Copper has high ductility and toughness, which makes it easy to deform without breaking even under mechanical stress. This property enables the production of both solid and highly flexible conductors and contributes to the high bending and fatigue strength of cables and wires.
- High temperature resistance: Copper can withstand high temperatures without losing its mechanical and electrical properties.
- Flexibility: Copper is a relatively soft metal and can be used and processed in a variety of ways.
- Sustainability: Copper can be recycled and reused several times.
Because of these properties, copper is suited for a wide range of applications in industry, building technology, mobility, or energy supply. For special applications, copper cables can also be tinned, nickel-plated or silver-plated. This allows individual properties to be specifically adapted to the respective requirements.
Aluminium—light and economical
Aluminium is the second most common conductor material after copper. Compared to copper, aluminium only has a conductivity of about 63 percent. Nevertheless, aluminium offers two main advantages.
- Weight: Aluminium is about 30 percent lighter than copper.
- Cost: Aluminium is much cheaper than copper.
For these reasons, aluminium is often used when weight and material costs play a particularly important role. Often, for example, in the energy sector, in long power lines, or in medium-voltage cables. Since the conductivity is lower, larger cross-sections (cross-section factor approx. 1.6) must be used to achieve the same current-carrying capacity.
At the same time, aluminium has some limitations compared to copper. The material is more brittle, more susceptible to corrosion and less mechanically resilient. Therefore, their use requires special expertise as well as suitable connection technology and tools.
Silver, gold or steel: What can be used as a conductor material?
Silver has the highest electrical conductivity of all metals. However, it is very expensive: the cost is many times higher than copper. For this reason, silver is usually only used for special applications where special performance and efficiency are required, such as in the high-end audio sector.
Often, silver is not used as a solid conductor, but as a coating on copper conductors. Silver-plated copper conductors also exhibit impressively high conductivity and corrosion resistance.
Gold, on the other hand, is not used as a conductor material. In addition to its high price, it also has a lower conductivity than silver or copper.
Steel also has a significantly lower conductivity compared to copper or aluminium, which is why it is not very suitable as a conductor material at first glance. But steel has other advantages: It is an extremely strong and tensile material. This is why steel is used in military applications and aerospace, for example, often in combination with other materials such as aluminium.
CCA—copper-coated aluminium: A good compromise?
CCA stands for “Copper Clad Aluminium”. These conductors consist of an aluminium core surrounded by a thin layer of copper.
Originally, this technology comes from antenna manufacturing. There, it was developed as a cost-effective alternative to high-frequency lines. The reason for this lies in the so-called skin effect, whereby at high frequencies (>/= 10 kHz), the current flows predominantly on the surface of the conductor.
In the electricity sector, however, CCA should be viewed critically, as the conductivity is significantly lower than that of pure copper. Nevertheless, CCA cables are increasingly being offered in the low-price segment, especially by Asian manufacturers.
Typical examples are:
- Speaker cables
- Power cable for car hi-fi
- Network cables (patch cables)
Possible disadvantages are often not sufficiently explained:
- A 2.5 mm² CCA conductor is only equivalent to a 1.5 mm² copper conductor
- Higher voltage drop and heat generation with “Power over Ethernet”
- Fire risk in the event of incorrect protection in the car hi-fi sector
- Use in company networks not compliant with standards (banned by TIA and IEC)

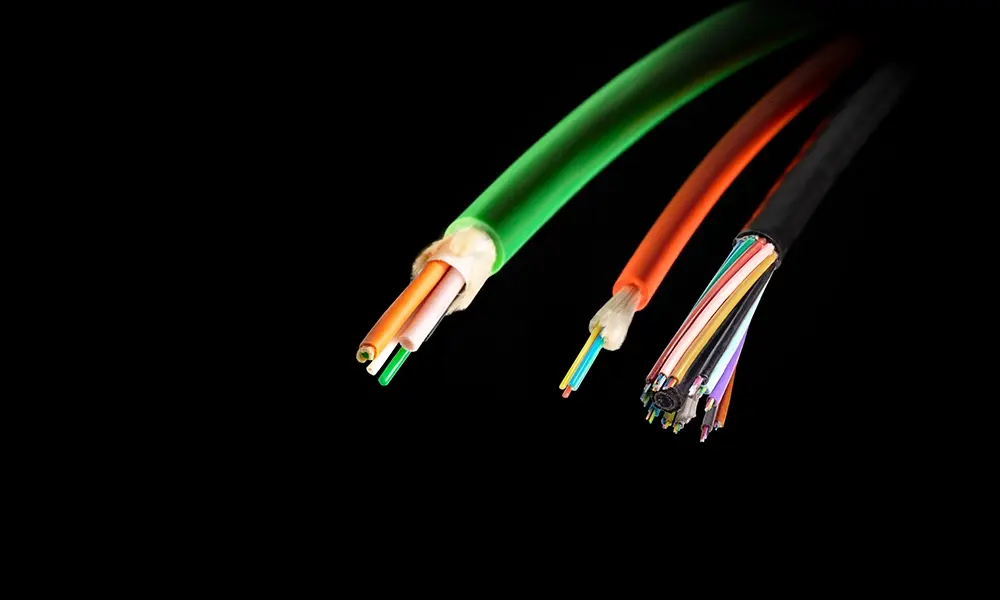

Fibre optics: High-speed data transmission
In addition to metallic conductors, there is another technology for signal transmission in the form of optical fibres. Here, information is not transmitted as an electric current, but as optical signals in the form of light pulses.
Fibre-optic cables are made of very thin glass or plastic fibres and offer several advantages:
- Very high transmission speed without signal loss
- Long ranges
- Insensitive to electromagnetic interference
- Galvanic isolation
Fibre-optic cables are therefore mainly used in telecommunications, data networks, medicine, and aerospace. However, they are not suitable for the transmission of electrical energy.
Which conductor material is the best?
The question of the “best” conductor material cannot be answered so easily, as it always depends on finding the right solution for the different factors of the application.
The optimal choice always depends on the respective application and the specific operating conditions. External influences such as temperature, chemical loads, mechanical stress, or electromagnetic interference also influence the selection of the right cable.
In addition to the conductor material, other features of the cable also play an important role:
- Strand construction
- Cross-section
- Stranding
- Insulation material
- Screening
- Sheath material
The interplay of factors determines whether a cable or wire reliably meets the requirements of an application in the long term.
Therefore, the best thing to do is to seek expert advice when choosing cables or wires. This ensures that the chosen solution meets all practical requirements reliably, safely, and economically.
