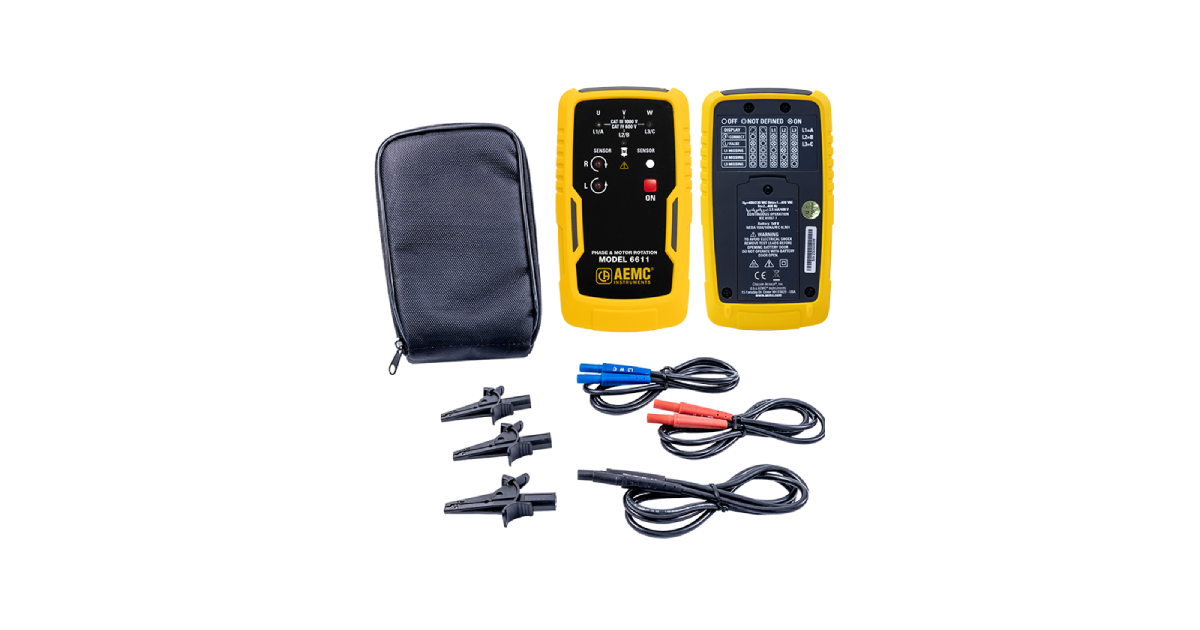

AEMC Phase & Motor Rotation Meter Model 6611

May 4, 2025

The Phase Rotation Meter Model 6611 is a compact and rugged meter designed to identify phase rotation on 3-Phase systems and identify live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output.

The Model 6611 is also an ideal tool for measuring the proper rotation of motors, conveyors, pumps and other electrical devices interconnected on the power line system before installation where direction of rotation is dependent on proper phase hook-up.

Specifications

Phase Rotation Connection MethodDirect Connection with Color-coded Leads
Rotating Field Connection MethodNon-Contact Static Induction
Operating VoltagesLeads Connected: 40 to 600VAC Between Phases; Unconnected: 120 to 400VAC Between Phases
Frequency Range15 to 400Hz
Phase Rotation IndicatorLEDs for Left or Right Rotation
Power SupplyOne 9V Alkaline Battery (Included)
Dimensions5.1 x 2.7 x 1.3” (130 x 69 x 32mm)
Weight6 oz (170g)
Operating Temperature32° to 104°F (0° to 40°C)
Storage Temperature-4° to 122°F (-20° to 50°C)
Relative Humidity<80%
Safety ComplianceIEC 61010-1; 600V CAT III
Ingress ProtectionIP 40
CE ApprovedYes

Go HERE for more information
