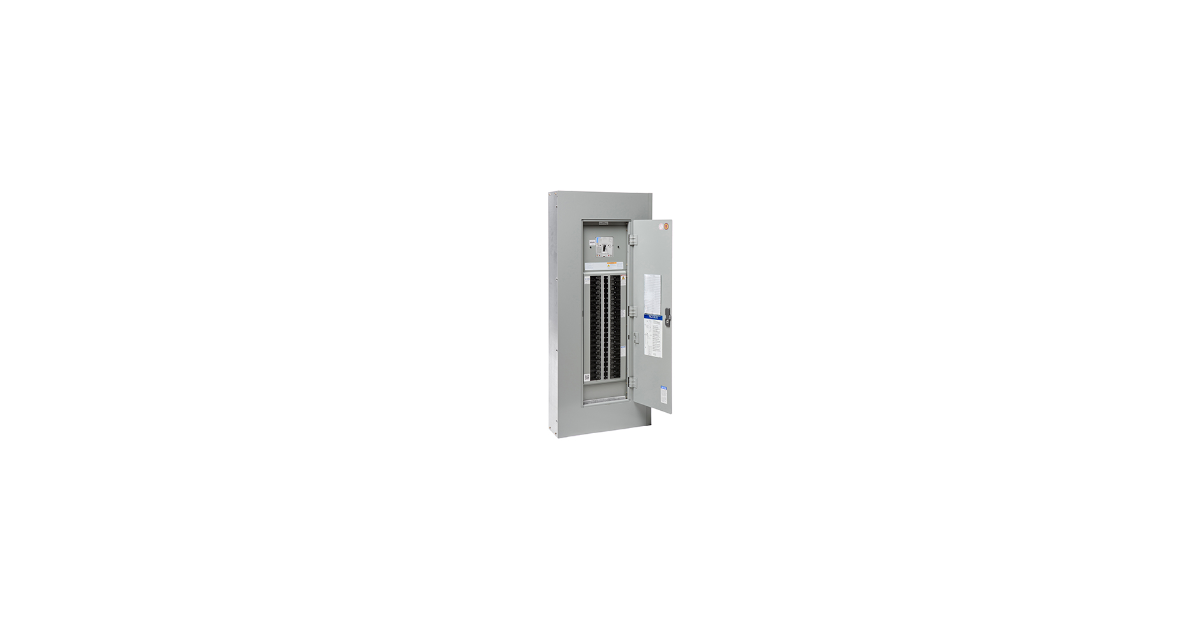

Pow-R-Line Xpert 1X Lighting and Appliance Panelboards

October 8, 2026

Eaton’s Pow-R-Line Xpert 1X (PRL1X) lighting panelboards provide a compact and flexible solution for electric power distribution with integrated breakers, metering and surge protection. In addition, these panelboards are designed to meet CSA C22.2 No. 29 and NEMA PB1 standards for use in data centres, industrial, commercial and healthcare facilities for up to 240 VAC and 600 A applications.

Core Features

  • Includes Eaton’s Power Defense moulded case circuit breaker as main and sub-feed circuit breakers
  • Available with bolt-on breakers up to 100 amps
  • Provides flush or surface-mounted and fully or series-rated options
  • Offers aluminium or copper bus options
  • Provides up to 84 branch circuit devices
  • Nema 1, 2, 3R, 4, 4X and 12 enclosures available
  • Offers sub-feed or through-feed lugs, single or dual sub-feed breaker options and a handle lock-off device
  • Includes surge protection, service entrance and integrated metering capabilities
  • Panelboards are seismically tested

Ratings

RATED MAXIMUM VOLTAGE240 VAC
CONTINUOUS CURRENT100–600 A
INTERRUPTING RATING240 VAC: 10 kA and 22k A fully rated240 VAC: 22–200 kA series rated

Standards

NEMAPB-1
THIRD-PARTY APPROVAL/RECOGNITIONUL 67/CSA 22.2 No. 29
SEISMIC QUALIFICATIONComing soon

Devices

PROTECTIVE DEVICESMoulded case circuit breakers and miniature circuit breakers
METERSMeters
SURGE PROTECTION DEVICES SPD
DEVICE MOUNTINGBolt-on or plug-in
