Electrical Safety for Pools and Water Features with Littelfuse Shock Block
By EB Horsman & Son
Outdoor pools, spas, and water features are designed to create comfortable and engaging environments. Behind every installation, however, is a complex electrical system powering pumps, heaters, filtration, and lighting. In these settings, water significantly increases electrical risk, making reliable protection essential.
For both residential and commercial applications, the Littelfuse Shock Block® provides a proven solution for electrical safety, helping protect people and equipment where water and electricity meet.
Understanding Electrical Risk in Water Environments
Pools, spas, fountains, and splash pads present unique safety challenges due to the conductive nature of water and constant exposure to outdoor conditions. Common risks include:
- Increased conductivity in wet environments
- Exposure to damaged wiring or insulation
- Higher likelihood of ground faults in outdoor installations
- Direct contact between people and conductive surfaces
These factors create a higher potential for electrical shock, particularly when equipment such as pumps, lighting, or heating systems develop leakage current
Compliance is Essential but Not Sufficient
Electrical codes establish baseline requirements for safety in aquatic installations. These include:
- GFCI or special purpose GFCI protection for pool equipment
- Protection of pumps, heaters, and associated electrical loads
- Updated requirements when equipment is replaced or retrofitted
While these requirements are essential, many outdoor and commercial applications benefit from enhanced protection due to environmental exposure, system complexity, and operational demands.
Shock Block® Active Ground Fault Protection
The Littelfuse Shock Block® is designed to improve electrical safety in demanding environments by:
- Detecting leakage current
- Monitoring ground continuity
- Rapidly disconnecting power before dangerous conditions escalate
It meets UL 943 and UL 943C standards for GFCI and special purpose GFCI protection, providing a comprehensive solution for both standard and higher load applications.
Certification & Compliance
| UL Listed (all models) | UL1998 |
| CSA Listed (all models) | LR 53428 |
| cULus Listed | Class A GFCI (UL 943) E330856 EGFPD (UL 943/UL 1053) E359574 Hazardous location models E537175 |
| UL Listed | Class A GFCI (UL 943) E330856 EGFPD (UL 943/UL 1053) E359574 Hazardous location models E537175 |
How Shock Block Works
Understanding how electrical protection functions is key when designing or maintaining safe pool and water feature systems. The Littelfuse Shock Block is designed to continuously monitor electrical current and quickly respond when unsafe conditions are detected.
How Protection Happens

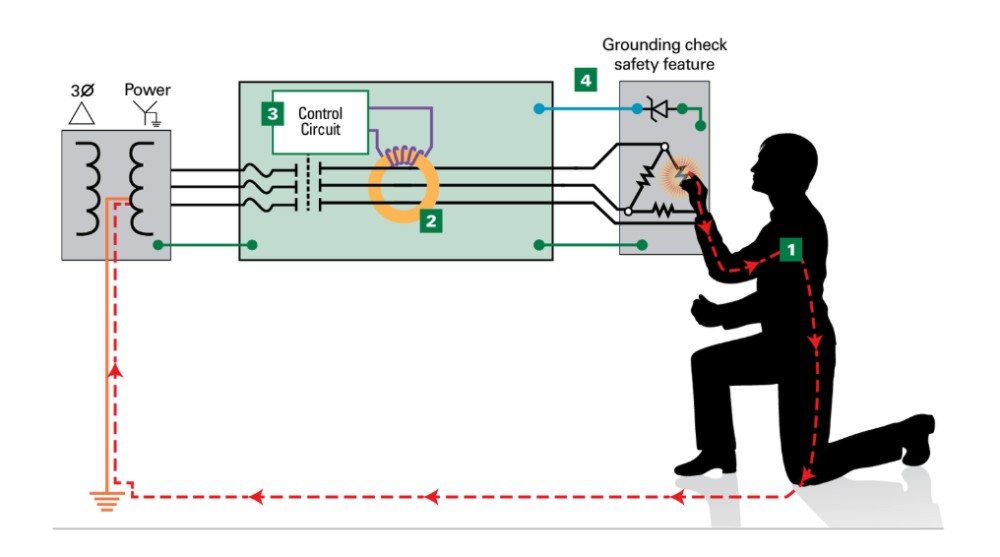

The Shock Block operates by detecting imbalances in electrical current and interrupting power before a hazardous condition can develop. The process can be broken down into four key steps:
- Current flow through an unintended path
In a fault condition, electrical current can travel outside its intended path, including through a person in contact with energized equipment or conductive water. - Current imbalance is detected
An internal current transformer continuously monitors the system and identifies any imbalance between outgoing and returning current. This imbalance indicates leakage current, which may present a shock hazard. - Circuit interruption for protection
When a fault is detected, the Shock Block control circuit responds by opening the circuit and removing power. This rapid disconnection helps protect personnel by preventing sustained exposure to electrical current. - Ground continuity monitoring
The system also checks the integrity of the ground connection between the device and the load. If the ground wire is damaged, disconnected, or has high resistance, the unit will alarm and deenergize the circuit. This proactive protection helps prevent hazardous voltage from developing.

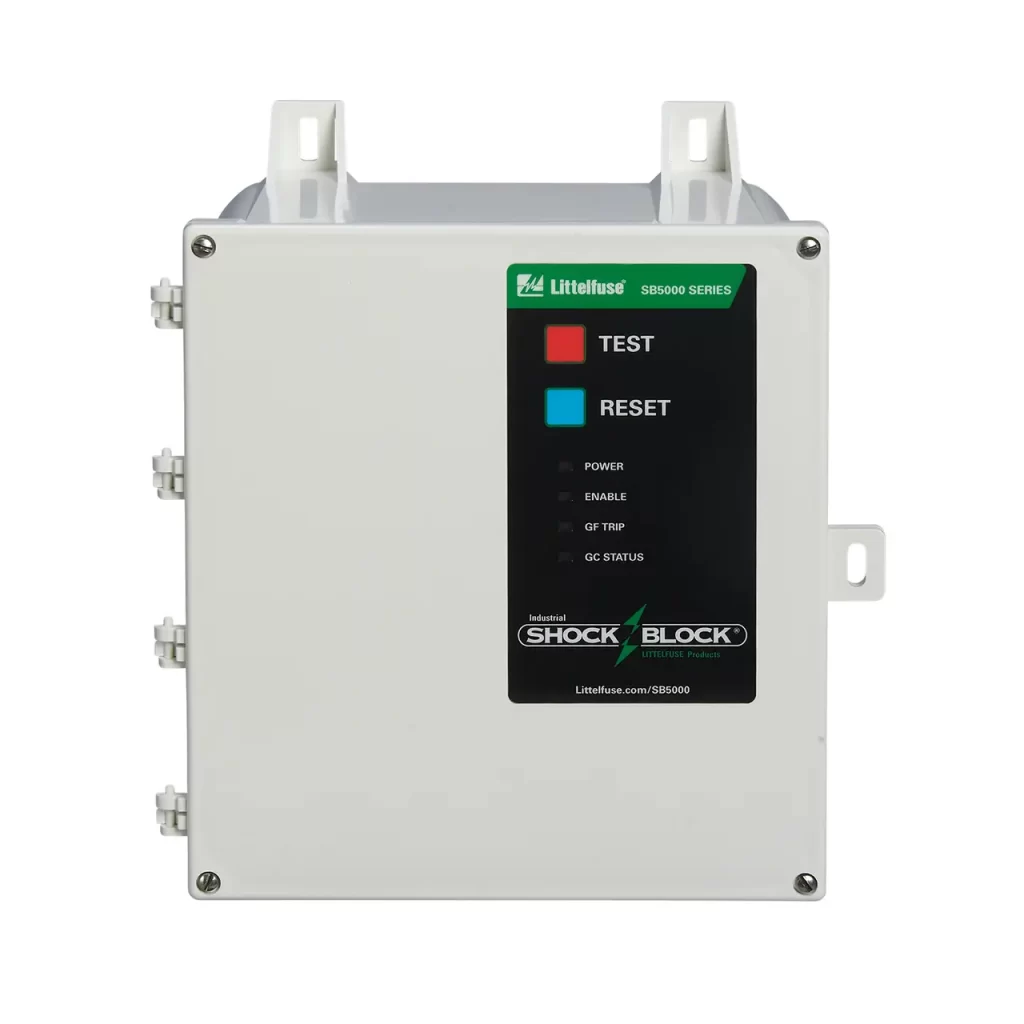

SB5000 Shock Block® for Commercial Pools, Spas & Water Features
For larger pool, spa, and water feature systems operating at higher currents or voltages, the Shock Block SB5000 series provides advanced personnel protection where standard GFCI devices may not be suitable.
The SB5000 Industrial Shock Block® is designed to meet UL 943 and UL 943C requirements for both GFCI and special purpose GFCI protection. It is commonly applied in commercial and industrial environments where higher load equipment is used and dependable protection is critical. Key Protection Capabilities
The SB5000 delivers a comprehensive approach to electrical safety by:
- Protecting personnel from electrical shock in applications where standard GFCI breakers or receptacles are not available
- Detecting leakage current and isolating electrical hazards before they escalate
- Monitoring ground circuit continuity to identify faults early and reduce risk
- Supporting equipment longevity through undervoltage, brownout, and contactor chatter detection
Flexible Protection Configurations
The SB5000 is available in multiple configurations to support a wide range of applications:
- Class A GFCI models with a fixed 6 milliamp trip level for personnel protection
- Special purpose GFCI models with a 20 milliamp trip level for applications that require higher thresholds
- Equipment ground fault protection device models with adjustable trip settings from 6 to 100 milliamps in 10 milliamp increments
- This flexibility allows contractors and engineers to match protection levels to the specific requirements of the installation.
Typical Applications
The SB5000 is well suited for:
- Larger commercial pool and spa systems
- Three phase pumps and heating equipment
- Water parks and aquatic facilities
- Installations where higher amperage or voltage exceeds standard GFCI capabilities
By providing adaptable, high performance protection, the SB5000 helps support safe operation across more demanding water based electrical systems.

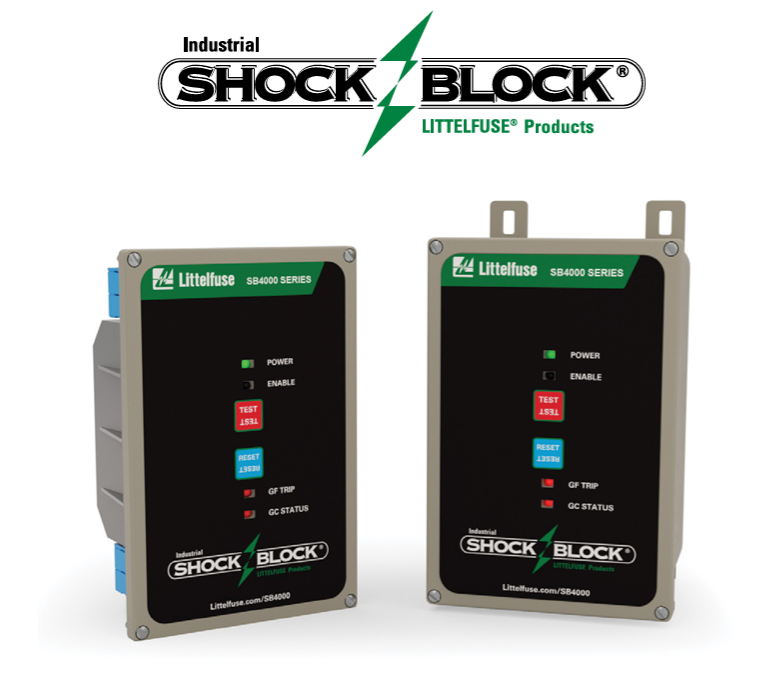

Shock Block SB4000 for Residential Pools and Water Features
The Shock Block SB4000 series provides dependable Class A GFCI protection for residential pools, spas, and outdoor water features operating on 30 amp branch circuits. It is designed to perform reliably in outdoor and wet environments, with conformal coated circuitry that helps protect against moisture and corrosion. It also includes continuous automatic self testing to verify proper operation, and will trip in the event of an internal fault to ensure protection is maintained at all times.
Reliable Protection
- Fixed 6 milliamp Class A trip level for personnel safety
- Detects leakage current and quickly disconnects power
- Advanced filtering reduces nuisance tripping from motor loads
- Provides protection where standard GFCI solutions are not suitable
Simple Installation
- Compact design with no flying leads
- Adjustable mounting and flexible conduit entry
- Screwless terminals for faster wiring
- Manual or auto reset options
The SB4000 delivers practical, reliable protection for residential water environments, helping reduce electrical risk while supporting safe system operation.
Designed for Residential Use
Ideal applications include:
- Backyard pools and hot tubs
- Decorative fountains and water features
- Pool equipment such as pumps, heaters, and filtration systems
- Outdoor electrical loads near water
The SB4000 supports both new installations and retrofits, helping meet code requirements while improving overall protection.
