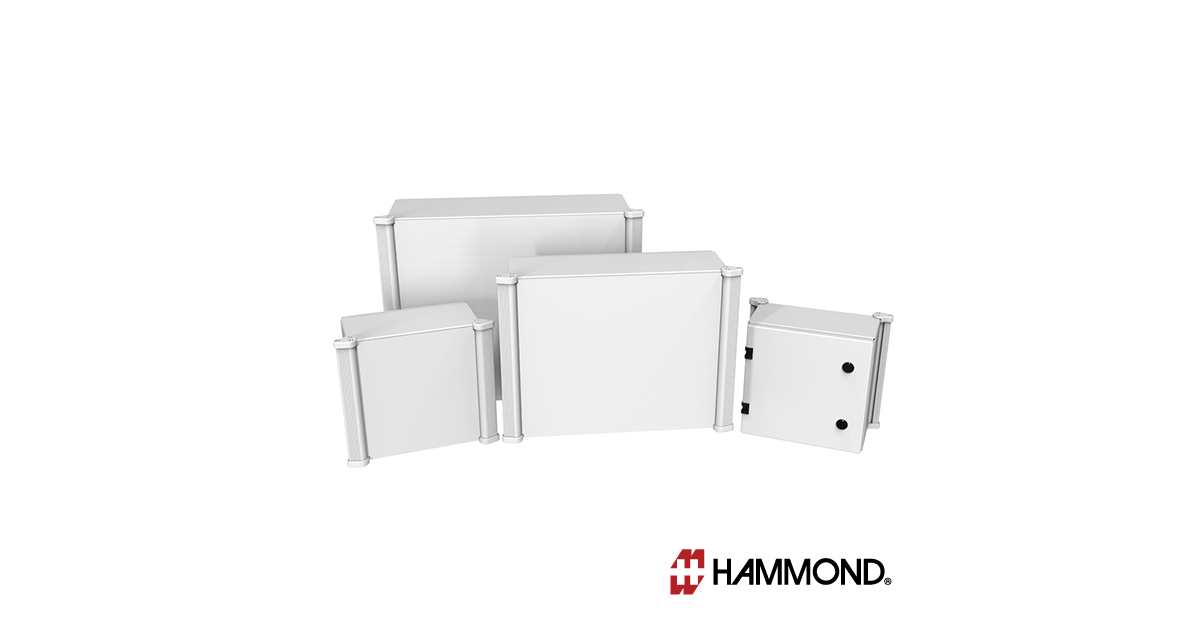

ACE Series Aluminum Command Enclosure from Hammond Manufacturing
November 8, 2025
Application
- Designed to enclose electronic controls, instruments and components in indoor environments where dirt, dust, oil and water may be present.
- Ideal for use with suspension systems.
- Full front mounting space provide for ideal operator interface.
- Smooth flush surfaces and attractive finishes compliment high tech equipment.
Standards
- UL 508A Type 12
- cUL Type 12
- Complies with
- NEMA Type 12 and 13
- IEC 60529, IP54
Construction
- Enclosure body and door formed from 0.081″ Type 5052 H-32 aluminum
- Smooth, continuously welded seams ground smooth.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Reversible rear door is secured with slotted quarter turn fasteners.
- Enclosure features vertical aluminum profiles on each side for easier rotation/manipulation.
- Door front panels are 3mm aluminum.
- Oil resistant gaskets are permanently secured.
- Bonding stud provided on door and grounding stud installed in enclosure.
- Quarter turn latches zinc diecast with black epoxy finish.
- Zinc diecast hinges with black epoxy finish.
- Fastening is recommended with optional Tara Plus or 50/80 suspension systems.
- Heavy duty re-inforcing plate included.
Finish
- Enclosure, side extrusions, and front panel all finished in RAL 7035 gray powder coating.
