Enveloping Warmth: Stelpro Architectural Radiant Panel
July 13, 2026

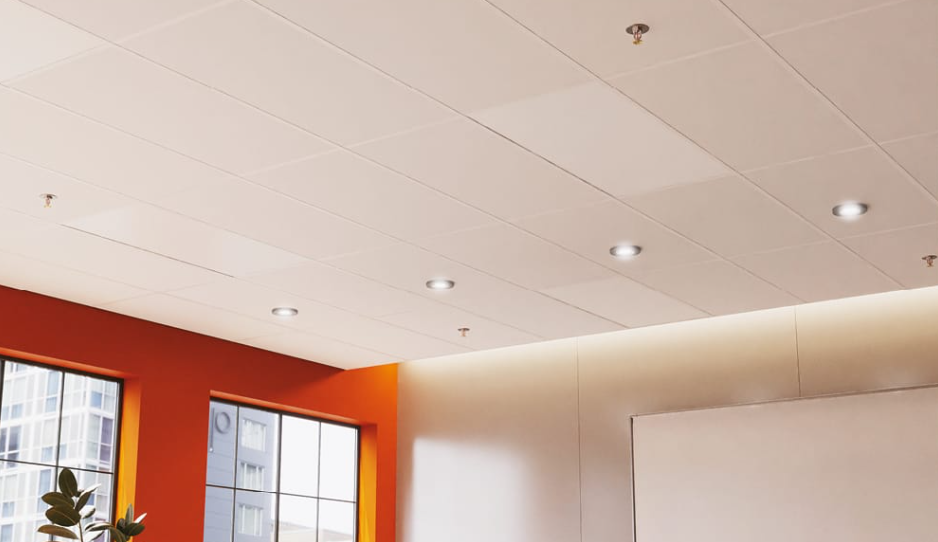

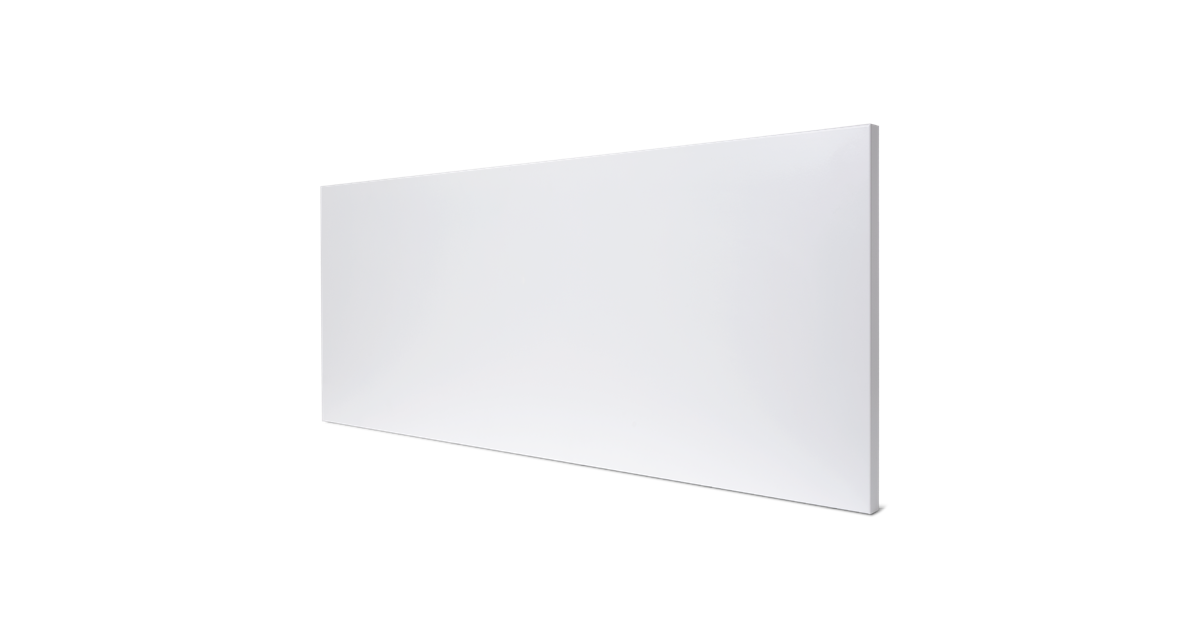

The Architectural Radiant Panel delivers clean, enveloping, energy‑efficient warmth. Designed for easy integration into a T‑Bar suspended ceiling, it can also be surface‑mounted or recessed using a range of optional accessories.
Advantages
- Radiant comfort where you need it most: A quiet, discreet, and efficient ceiling-mounted heating solution
- Free up space. keep the comfort: Direct radiant heat without taking up floor space
- Direct, even warmth: Heats occupants and surrounding surfaces without air circulation
- Built for demanding spaces: Ideal for offsetting heat loss or heating an entire space
Specifications
COLOURS
- Standard: white, black
- Orora (optional): refer to stelpro.com/orora/
FINISH
- High-temperature polyester powder coating
MANUFACTURING
- Reflective foil bonded to the panel’s heating elements
- High-temperature mineral wool insulation, density 2.5 PSF, 1 in (25.4 mm) thick
- The front of the panel is made of 22-gauge painted steel. The panel cover is made of 22-gauge satin-finished steel
- Suspension brackets at the four corners of the panel (suspension cable not included)
ELEMENT
- Single-conductor heating wire with fluoropolymer insulation evenly distributed across the panel
DENSITY
- 62.5 to 93.75W/ft2 at rated voltage
CONTROL
- Line-voltage control circuit for thermostat, timer or switch (not included; must be compatible with the appliance’s voltage and power rating)
- Stelpro strongly recommends the use of a wall-mounted electronic thermostat for greater comfort
CERTIFICATION
- CSA STD C22.2 No.46 / UL 2021
INSTALLATION
- Suspended from the ceiling or fitted into a T-bar suspended ceiling
- A variety of optional accessories is available for surface mounting using an SF frame on a drywall ceiling, or for recessed installation using an RF frame. An RB option is also available for recessed installation in a non-ventilated ceiling
- Minimum clearance of 2 in (50.8 mm) above the panel
- Minimum installation height of 7 ft (2.13 m) from the floor
- Relocation possible
WARRANTY
- One year on paintwork, ten years on components
