Ex-Solutions Hazardous Lighting: XSL14 LED Series
May 26, 2026

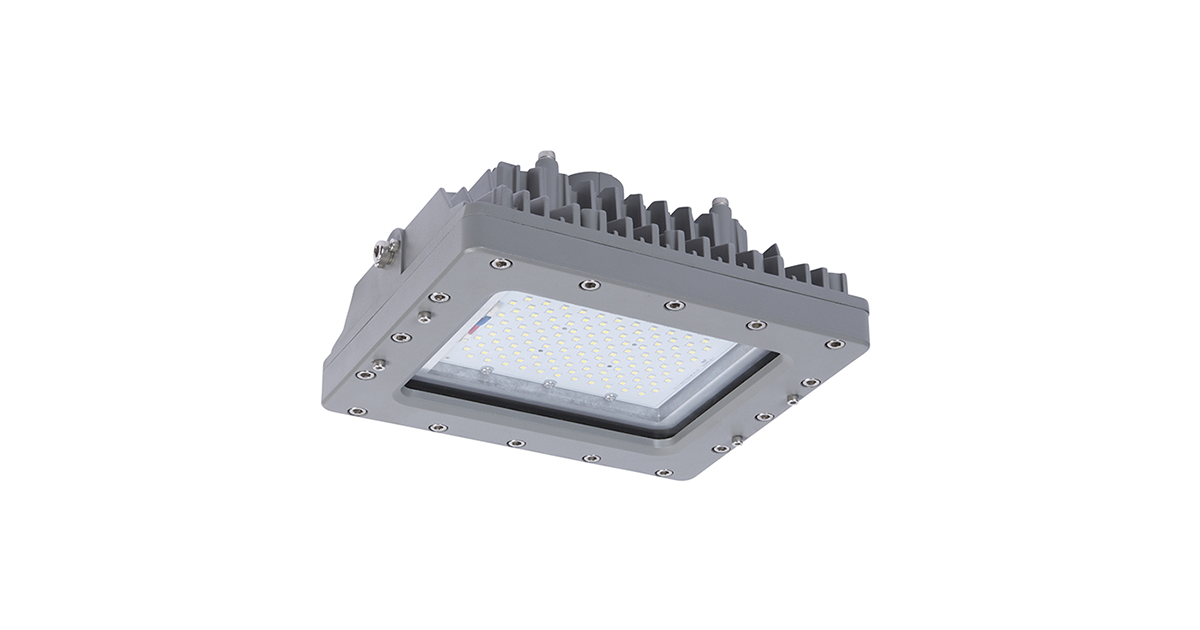

XSL14 is a shock and vibration resistant lighting fixture, designed for use in marine and wet locations, and a variety of hazardous areas. XSL14 covers covering Class I Division 1 and 2, Class II Division 1, Class III. Offering a wide range of lumen output, ranging from 6499 to 8514 lumens. The XSL14 has several different mounting options such as pendant mount and optional yoke/pipe bracket for trunnion wall or pole mount.
Features
- Temperature range 40W and 50W models: -40°F to 149°F (-40°C to 65°C)
- Temperature range 60W model: -40°F to 147°F (-40°C to 64°C)
- Shock and Vibration resistant (5G)
- Exposed hardware made of stainless steel
- Sealed to IP66 and IP67
Benefits
- Life expectancy: 130,000 Hours
- Certified for use in marine locations
- Corrosion-resistant copper-free aluminum housing
- Available with clear or frosted tempered glass lens
- IP66/67 rated fixture
- 5-year warranty
Applications
- Power plants
- Paper mills
- Wastewater treatment plants
- Chemical processing
- Petrochemical
Approvals
- CUL Marine listed
- IP66/67
Classifications
| Class I, Division 1 | Groups B, C, D |
| Class I, Division 2 | Groups A, B, C, D |
| Class II, Division 1 | Groups E, F, G |
| Class III |
