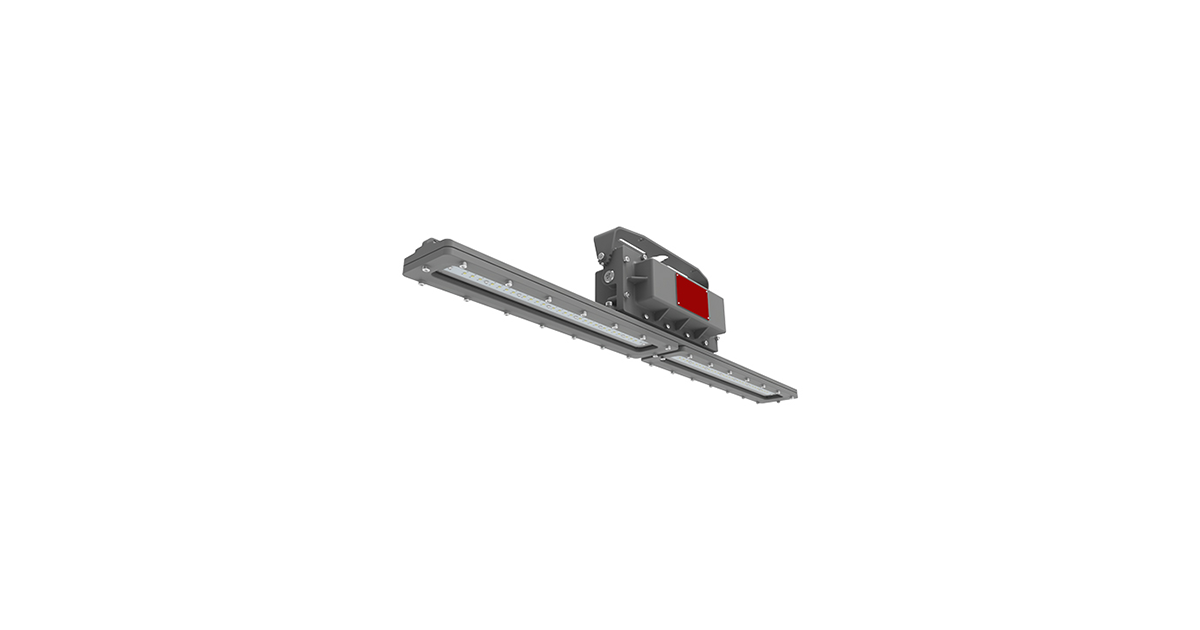

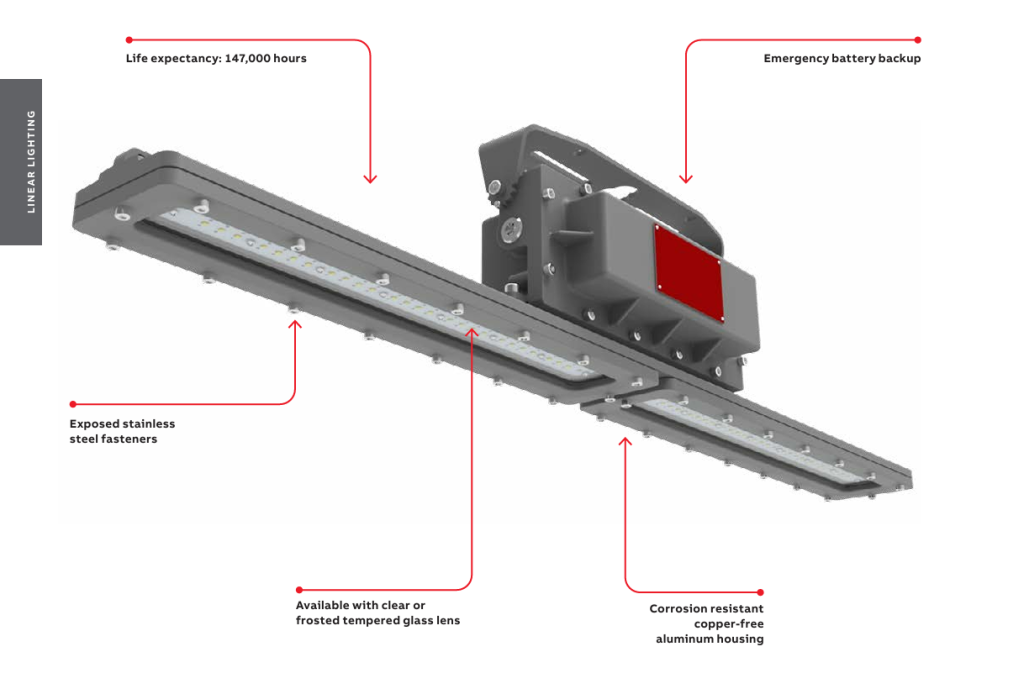

Hazlux® LI1-EM Series Versatile Impact and Shock-Resistant Lighting
June 22, 2026
Versatile and explosion-proof lighting with a slim design, the LI1-EM Series can be mounted on a wall, ceiling, and pole in various hazardous locations, ranging from mines to petrochemical facilities.
Key benefits
- Available in 60° wide beam profile and 110° wide beam profile
- Housing made of copper-free aluminum
- Tempered-glass lens is impact and thermal shock-resistant
- Available in 5000K (standard)
- Lumen output: 10,800 lumens
Approvals
| UL Listed: UL844, UL924 |
| 5G (Shock and Vibration Resistant) |
| 1000 Hours Salt Spray |
| IP66 rated |
Classifications
| CLASS I | |
| Division 1 | Groups C, D |
Features
- Operating temperature: -4°F to 113°F (-20°C +45°C) optimal 77°F (25°C)
- Exposed hardware made of stainless steel
- Slim and compact design
- Emergency run time: 90 minutes
LED
- Efficacy: up to 136 Lm/W
- Lumen output: 10,800 lumens
- OSRAM LED’s
- CRI Ra>70
- Correlated Color Temperature (CCT): 5,000K (standard)
Electrical
- Operating voltage: 120-277VAC (50/60Hz)
- Power factor 0.95
- Driver efficiency 90%
- THD <20%
- Surge protection standard up to 10KV (Contact your sales representative if high protection is required.)
Electrical Specifications
- Specification: LI1-EM-8 (battery backup)
- Rated power: 80W (6W)
- Input voltage: 120-277VAC only (50/60Hz)
- Battery: Nickel-cadmium
- Expected battery life: 5 years
- Charge time: 24 hours
- Emergency run time: 90 min.
- Input current (standard mode): 0.67/0.29A (AC120/277VAC)
