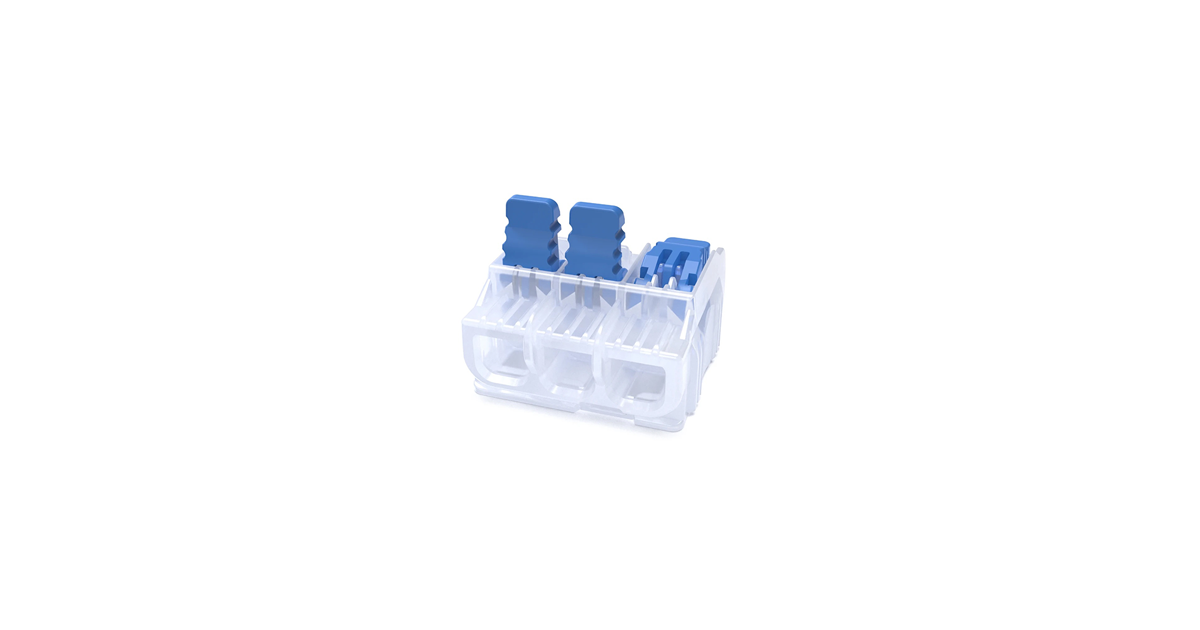

Ideal In-Sure® Lever Wire Connectors 3-Port
July 9, 2026

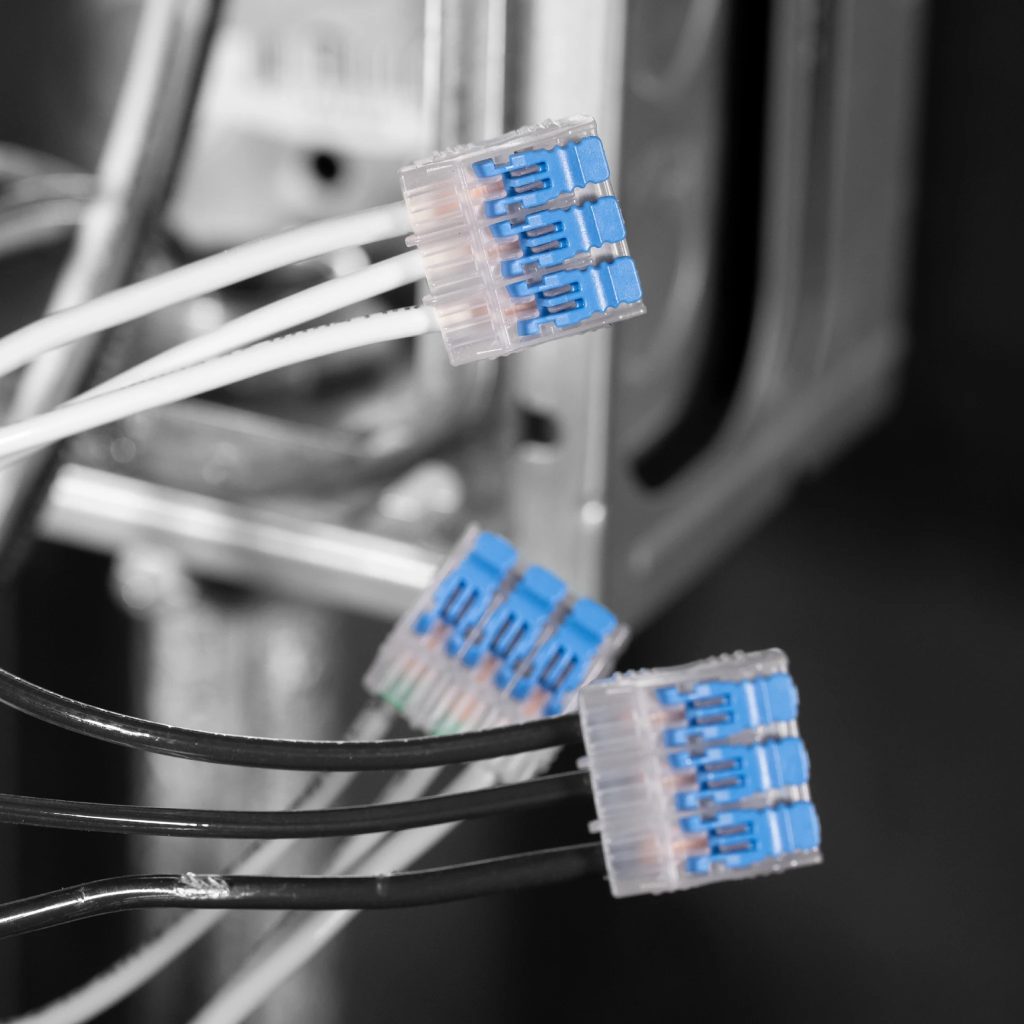

IDEAL Electrical’s In-Sure® Lever Wire Connectors 3-Port are designed to help electricians make fast, secure and reusable wire connections in tight spaces.
The connectors accommodate 12 AWG to 24 AWG solid and stranded copper wires and feature a clear housing for easy visual inspection. A two-stage locking feature, continuity check port and strip length guide help support a reliable connection, while the compact design makes them easy to fit inside junction boxes. The lever placement on the opposite side of the wire port also helps prevent accidental openings in cramped applications.
Features
- CONVENIENT LEVER DESIGN: Levers are positioned on the opposite side of the wire port
- REUSABLE WIRE RANGE: Supports 12 AWG to 24 AWG solid and stranded wires
- VOLTAGE AND TEMPERATURE: Maximum rated voltage is 600V and the maximum temperature is 105°C
- SECURE CONNECTIONS: Two-stage locking feature and continuity check port with a strip length guide
- RIDGED SIDES: Unique housing design provides improved grip
- COMPACT CONNECTOR: Conveniently sized to easily fit into junction boxes
- EASY TO INSERT WIRES: Solid wires can be inserted without opening the lever
