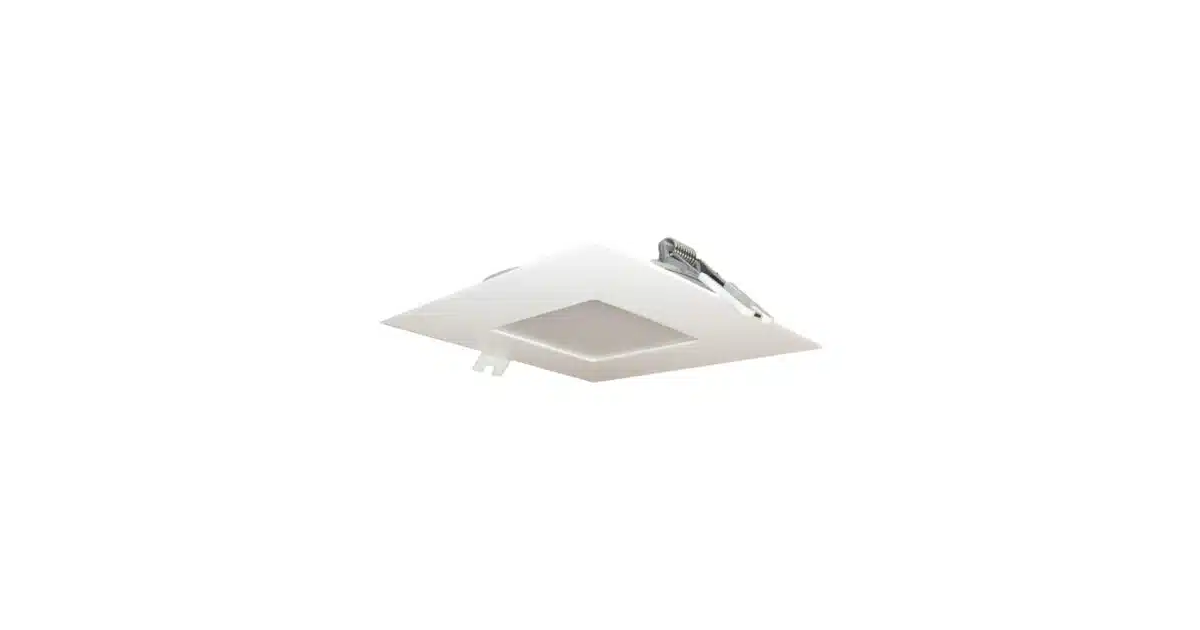

Magic Lite Square 5CCT LED Thin Line Down Light
September 17, 2026
Explore innovation in lighting with Magic Lite’s 5CCT LED Thin Line Down Light (Square). Crafted with modern design and practical functionality, this downlight offers a seamless blend of style and versatility.
Features:
- Adjustable color temperature for customizable ambiance
- TRIAC dimmable technology for enhanced control
- Wide 120° beam spread for ample illumination
- Easy installation with two spring-loaded clips
- Temperature rating from -20ºC to 45ºC for reliable performance
- Direct connection to a 120V power supply for convenience
- Optional 347V Step-Down Transformer available for non-dimmable setups
Specifications:
| Size | 4 Inches | 6 Inches | |
| Product Code | DL-5CCT-4S-WH | DL-5CCT-6S-WH | |
| Electrical | Input Voltage | 120V AC | |
| Power Consumption | 9W | 12W | |
| Specs | Colour Temperature | 2700K/3000K/3500K/4000/5000K | |
| Lumen Output | 630 | 840 | |
| Efficacy | 70lm/W | ||
| CRI | 90 | ||
| Dimmable | Yes (Triac) | ||
| Beam Angle | 120° | ||
| LED | Type | Epistar | |
| Life Span | 50,000 Hours | ||
| Design | Dimensions Inches | 4.1 x 4.7 x .4’’ | 6.3 x 6.8 x .4’’ |
| Dimensions Millimeters | 103 x 120 x 11.3mm | 159 x 171.5 x 11.3mm | |
| Installation Hole Size | 4.33” (110mm) | 6.30” (160mm) | |
| Finish | White | ||
| Trim Ring Finish | BK-Black, BZ-Bronze, BN-Brushed Nickel | ||
| Operating Temperature | -20°C to 45°C | ||
| Approved Location | Wet | ||
| Mounting | Ceiling | ||
| Warranty | 5 years | ||
| Approvals | cETLus, Energy Star | ||
