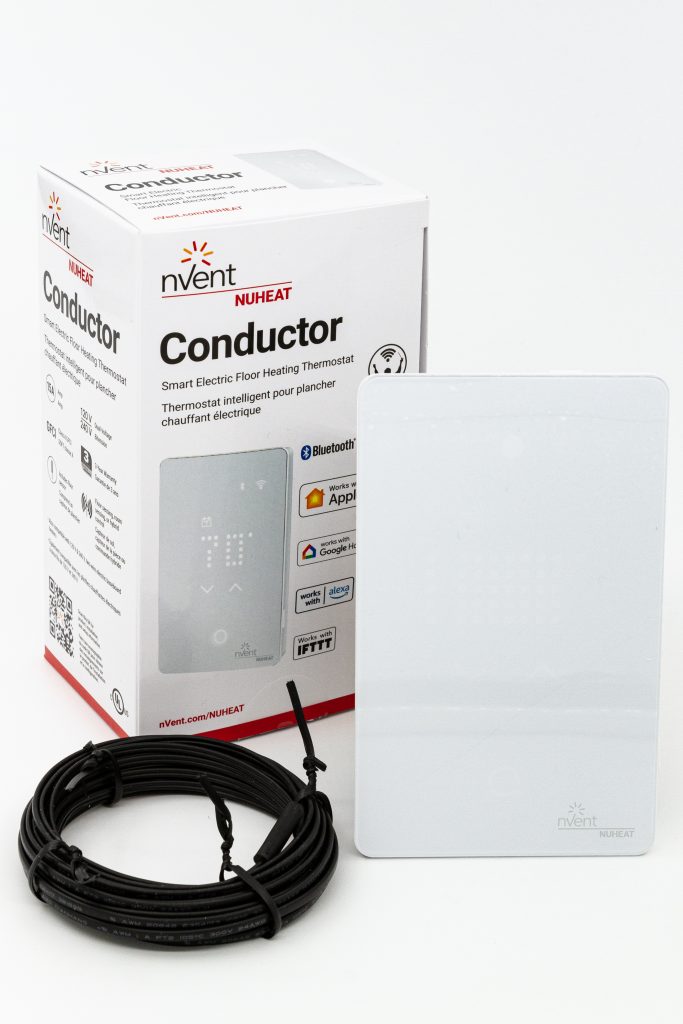

NVENT NUHEAT Conductor Floor Heating Thermostat: Next Generation Connected Control

January 26, 2026

Key features include:

• Vanishing, touch-sensitive display
• Remote control from anywhere with intuitive new iOS® and Android® apps
• Next-gen connectivity with Wi-Fi, Bluetooth®, over-the-air updates, and enhanced security
• Works with the broadest array of smart devices and home automation systems of any floor heating thermostat
• Open API for custom integrations and future-proof compatibility
• Advanced new features such as Auto-Adaptive Scheduling, Open Window Detection, and Vacation Mode
• 3-year warranty

Technical

• Supply Range: 120/208/240 Vac 50/60 Hz
• Load: 15 A max (resistive load)
• Max Power: 1800 W at 120 Vac; 3120 W at 208 Vac; 3600 W at 240 Vac
• Built-in GFCI: Class A (5 mA trip level)
• Control Temperature Range: +5 to +40°C / +41 to +104°F
• Ambient Temperature Range: 0 to +25°C / +32 to +77°F
• Max. Temperature Presets: Tile/stone (40°C / 104°F); Laminate/vinyl (28°C / 82°F); Wood (27°C / 80°F); Custom (5 – 40°C / 41 – 104°F)
• Wifi: IEEE 802.11 b/g/n, 2.4 GHz
• Bluetooth®: Version 4.2 (BDR/EDR/BLE)
• Contains FCC ID: XPYNINAW106
• Contains IC ID: 8595A-NINAW106
• Construction of Control: Electronic room thermostat for regulating 120 V / 208 V / 240 V electrical underfloor heating. Also compatible with 120 V / 208 V / 240 V two-wire electric baseboard heaters.
• Method of Mounting Control: Independently mounted control for flush mounting
• Sensing Capability: Floor sensing, room sensing, or hybrid control (floor sensor included)
• Type of Action: Type 2.B
• Rated Impulsive Voltage: 2500 V
• Warranty: 3-Year limited warranty
• Certification: c UL us Listed
• UL File Number: E157297 (according to the following standards) Thermostats – UL 60730-2-9; CSA E60730-2-9. GFCI: UL 943 5th ed.; CSA C22.2 No. 144.1-16 2nd ed.
