Schneider Electric PanelSeT CRN Plain Door with Mount-Plate Enclosure
August 29, 2025

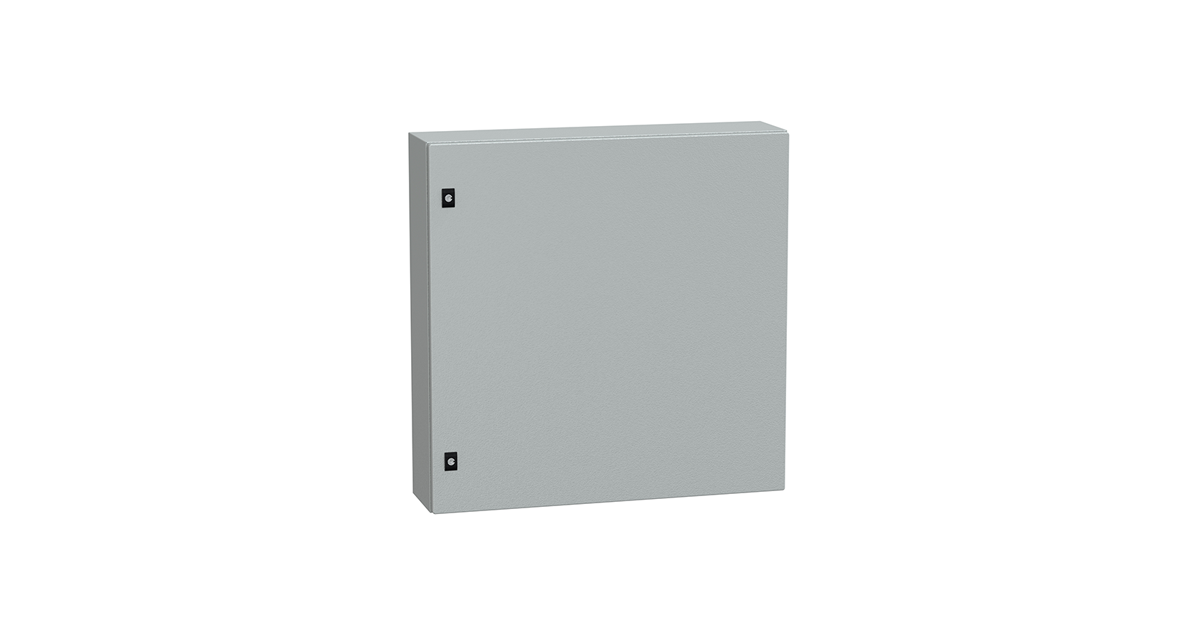

PanelSeT CRN Plain Door with Mount-Plate – NSYCRN88200P Enclosure
PanelSeT CRN is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments. It is certified by cULus and DNV-GL and has an IK10 (IEC62262) rating and an IP66 (IEC60529) rating, making it highly resistant to dust and water. This enclosure has a nominal height, width, and depth of 800mm, 800mm, and 200mm, respectively, and is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish. The PanelSeT CRN consists of a body, a plain door with a three-point lock and a 3mm double-bar insert, a mounting plate, and two cable gland plates at the bottom.
The door can be opened up to 120°, allowing easy access to the equipment inside; it is possible to change the opening side of the door (reversible). The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes, with the net weight of the enclosure being 33kg. This variant has sides made from a single folded section and a back welded with double profile forming a protected sealed area, with the accessibility for operation being at the front. This compact enclosure is cULus certified.
Features
- Secure three-point lock with a 3mm double-bar insert.
- Reversible door opening side for customization.
- Highly resistant to water and dust ingress with IP66 rating.
- Easy access to equipment inside with 120° opening door.
- Steel wall-mounted enclosure suitable for harsh environments.
Specifications
| Range | PanelSeT |
|---|---|
| Product Name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure Nominal Height | 31.5 in (800 mm) |
| Enclosure Nominal Width | 31.5 in (800 mm) |
| Enclosure Nominal Depth | 7.9 in (200 mm) |
| Installation Accessory Type | Wall-mounting |
| Device Composition | 1 body 1 door with lock 1 mounting plate 2 cable gland plate bottom |
| Door Type | Plain |
| Mounting Plate Description | Plain |
| Body Type | Sides made from a single folded section Back welded with double profile forming a protected sealed area |
|---|---|
| Number of Doors | Front face 1 |
| Door Opening Side | Reversible 120 °) |
| Lock Type | 3 mm double-bar lock |
| Type of Gland Plate | Standard |
| Accessibility for Operation | Front |
| Removable Parts | Door by hinges Cable gland plate by screws Mounting plate by fixing element |
| Material | Enclosure steel Mounting plate galvanised steel |
| Surface Finish | Enclosure epoxy-polyester powder |
| Colour | Enclosure grey RAL 7035) |
| Standards | IEC 62208 cUL UL |
| Product Certifications | cUL UL DNV-GL |
| Net Weight | 72.8 lb(US) (33 kg) |
