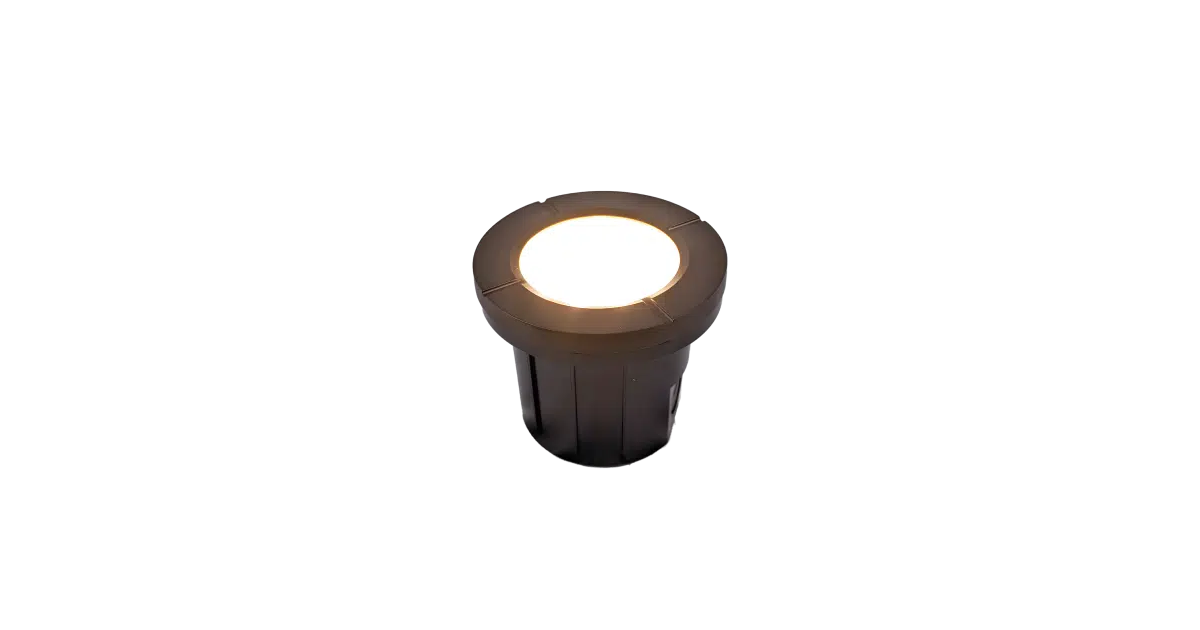

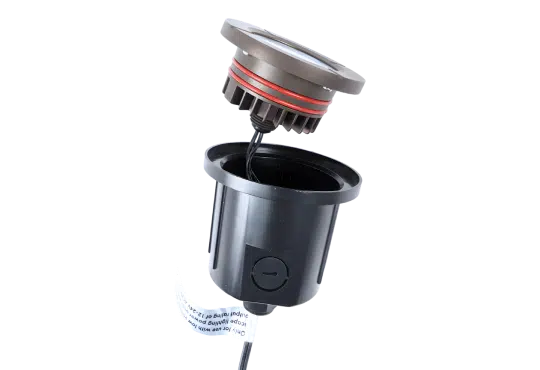

In-Ground Well Light from Magic Lite
May 4, 2026
Illuminate columns, fences, and trees discreetly with this well light. Designed for flush installation, it features a robust die-cast aluminum housing and a powerful integrated 6-watt LED. Waterproof and backed by a 15-year warranty.
Features:
- Die-cast aluminum housing
- Sleeve included
- 12-24V
- Black finish
- 580-lumen output
- 3000K
- 18/2 wire pigtail
Specifications
| Product Code | IG-01-12V-36D-BLK | IG-01-12V-60D-BLK | |
| Electrical | Input Voltage | 12/24V AC/DC | |
| Power Consumption | 6W | ||
| Specs | Colour Temperature | 3000K | |
| CRI | 90+ | ||
| Lumen Output | 580LM | ||
| Efficacy (LM/W) | 97 | ||
| Dimmable | N/A | ||
| Beam Angle | 36° | 60° | |
| LED | Type | SMD2835 | |
| Life Span | 50,000 Hours | ||
| Design | Dimensions (Inches) | 3.03 x 4.02″ | |
| Dimensions (Millimeters) | 76.9 x 102 mm | ||
| Finish | Black | ||
| Material | Die-cast Aluminium | ||
| Cable | Copper | ||
| Operating Temperature | -20 to 40°C | ||
| Approved Location | Outdoor | ||
| Mounting | in ground | ||
| Warranty | 15 years | ||
| Approvals | cETLus | ||
