Liteline Fossil Trimless Steplight
August 25, 2025

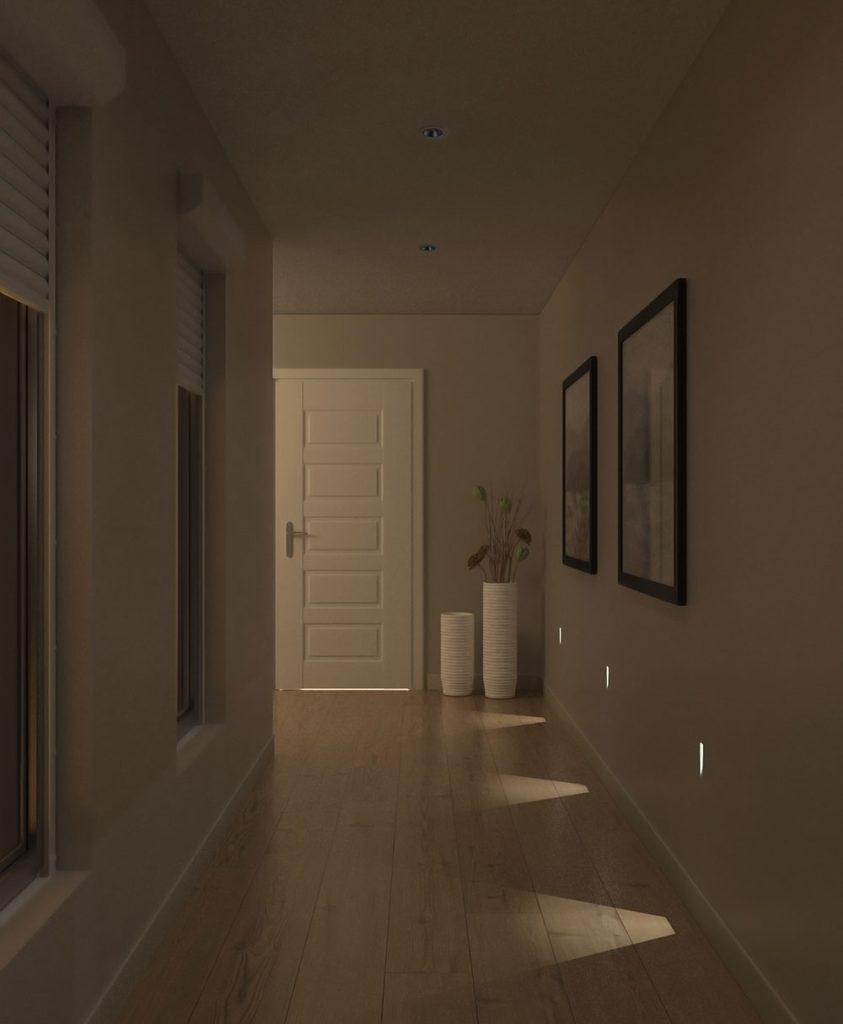

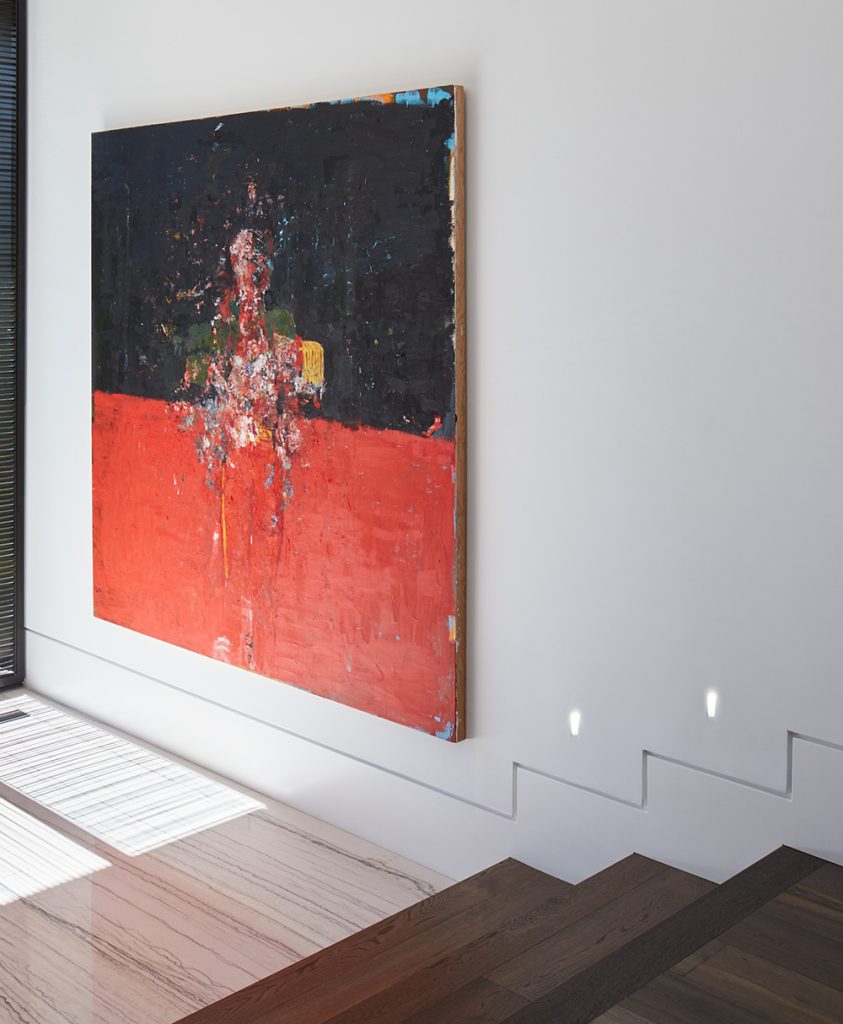

With minimalism at its core, FOSSIL is an interior steplight collection that seamlessly meshes with its surroundings. Available in four unique shapes, FOSSIL is a pre-formed plaster fixture that easily-installs into a building’s frame for a flawless trimless look, without the need to cut holes and reducing costs associated with intensive labor.
Body Construction
Constructed from plaster, this trimless fixture features an embedded light fixture and smooth reflective opening that provides clean and glare-free lighting.
LED Characteristics
Powered by a 2 watt LED chip that maintains uniform intensity with 70% lumens at 35,000 hours average life; with a minimum CRI of 90. NOTE: Tile light has provision for M2.5 screw insertion to pull out the fixture for servicing purposes (once plaster tile is mudded in place).
Power Consumption
This fixture operates on 24V DC. (See page 2 for driver options)
Light Output
This accent light available in 2700 K, 3000 K and 3500 K color temperatures, providing up to 70 lumens.
Dimming
The LED lamp supports 100~1% dimmable functionality when used with dimmable driver. NOTE: Use with CDC, set the internal dimming dip switch to VR
Beam Spread
The fixture lens provides a 70 degree beam spread.
Linking
Each fixture provided with 22 AWG 2-SPL wire for hardwiring to other fixtures and driver. Use wire type and gauge suitable for application to connect the fixtures.
QuickShip Made-To-Order
Made-To-Order products ship within seven business days of an order being released.
