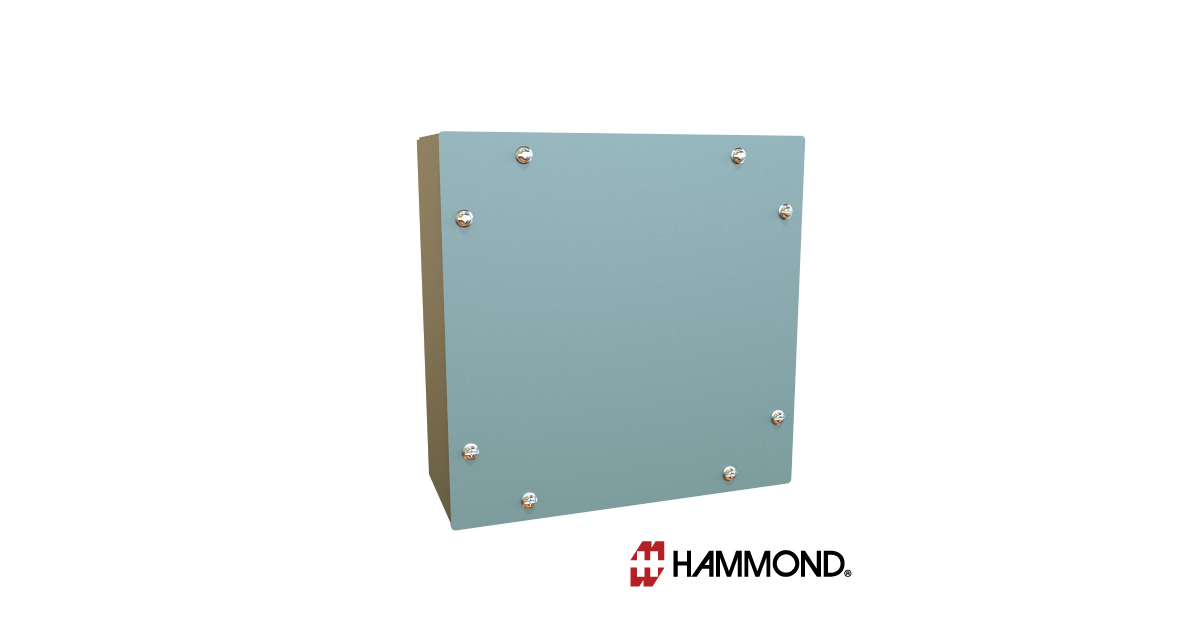

Type 3/12/4 Mild Steel Junction Box: C3SC Series

May 19, 2025

Designed for use as a wiring box, junction box, terminal or pull box in indoor or outdoor applications where subject to windblown dust or rain.

Standards

  • UL 508A Listed; Type 3, 4, 12
  • cULus Listed per CSA C22.2 No 94; Type 3, 4, 12
  • Complies with
    • NEMA Type 3, 4 and 12
    • IEC 60529, IP66

Construction

  • 14 gauge steel body up to 24”x24”; 12 gauge body when 30”x30” or larger
  • 14 gauge steel cover up to 24”x24”; 12 gauge cover when 30”x30” or larger
  • Smooth, continuously welded seams without knockouts, cutouts, or holes
  • Captivated stainless steel cover screws thread into sealed wells
  • Seamless poured-in place gasket
  • No provision for inner mounting panel
  • Mounting Foot Kit sold separately – use C3MTGFOOT
  • Replacement lid cover screws (package of 25) – use 1421A4XLCS25SS
  • Replacement lid cover washers/sealed wells (package of 25) – use 1421A4XLCW25

Finish

  • Enclosure and cover are finished with an ANSI 61 gray powder coating inside and outside

Go HERE for more information
